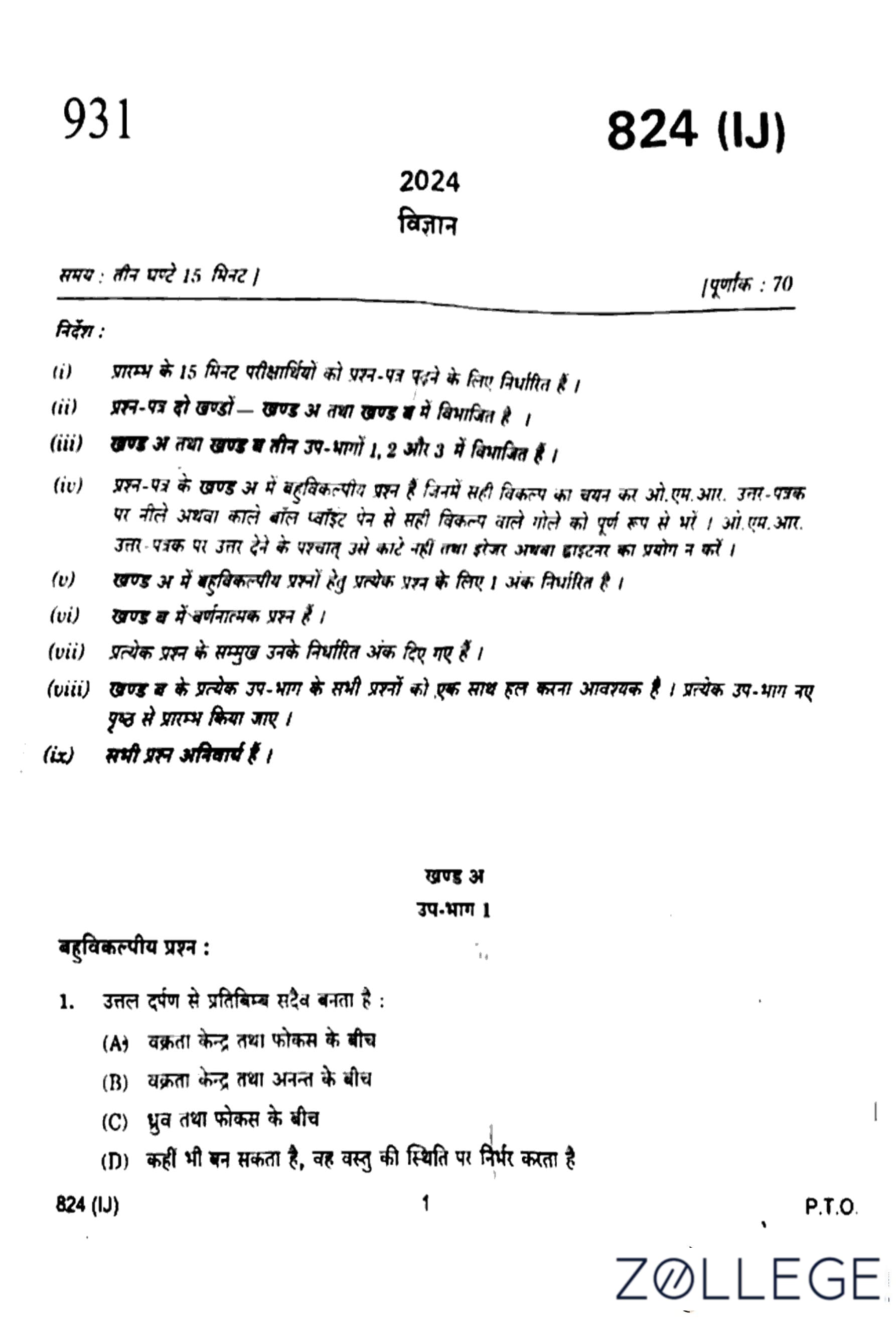

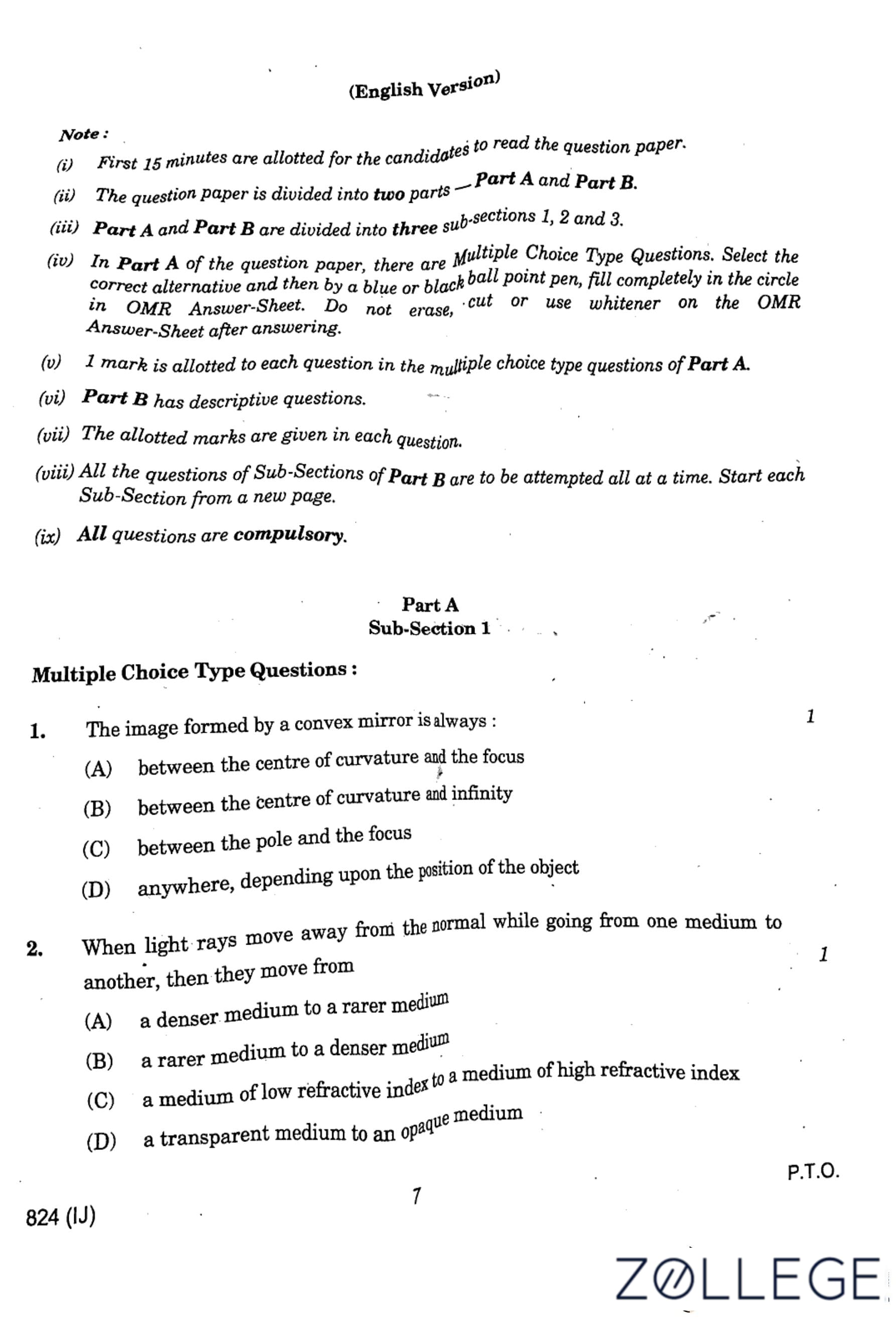

A convex mirror always forms a virtual, erect, and diminished image between the pole and the focus, regardless of the object's position. This property makes convex mirrors useful for rear-view mirrors in vehicles, providing a wider field of vision.
Quick Tip: Convex mirrors always form virtual, erect, and diminished images, making them useful for safety and surveillance.

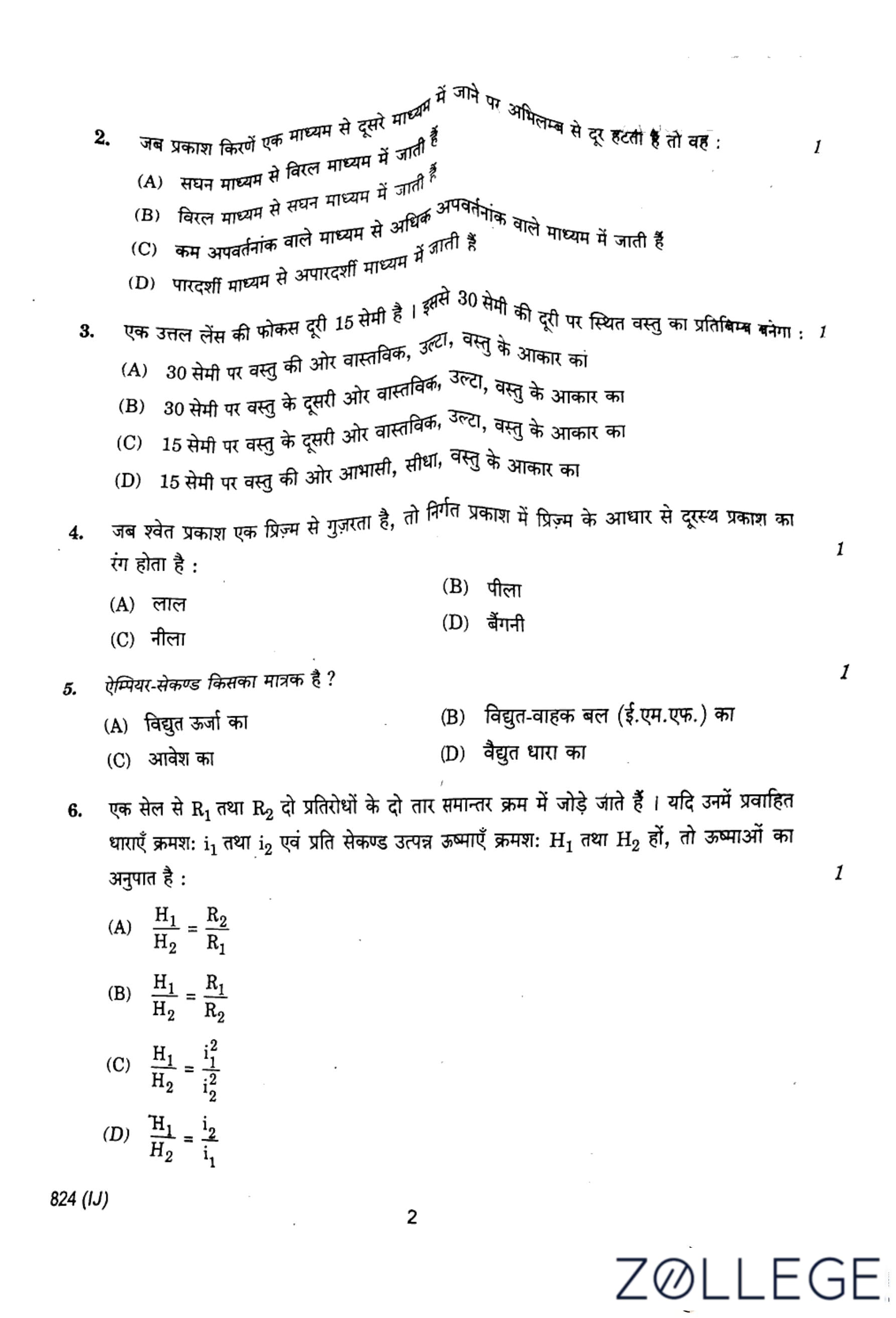

When light passes from a denser medium to a rarer medium, it speeds up and bends away from the normal due to a decrease in refractive index. This phenomenon follows Snell’s Law and is responsible for effects like total internal reflection.
Quick Tip: Light bends \textbf{towards the normal} when moving to a denser medium and \textbf{away from the normal} when moving to a rarer medium.

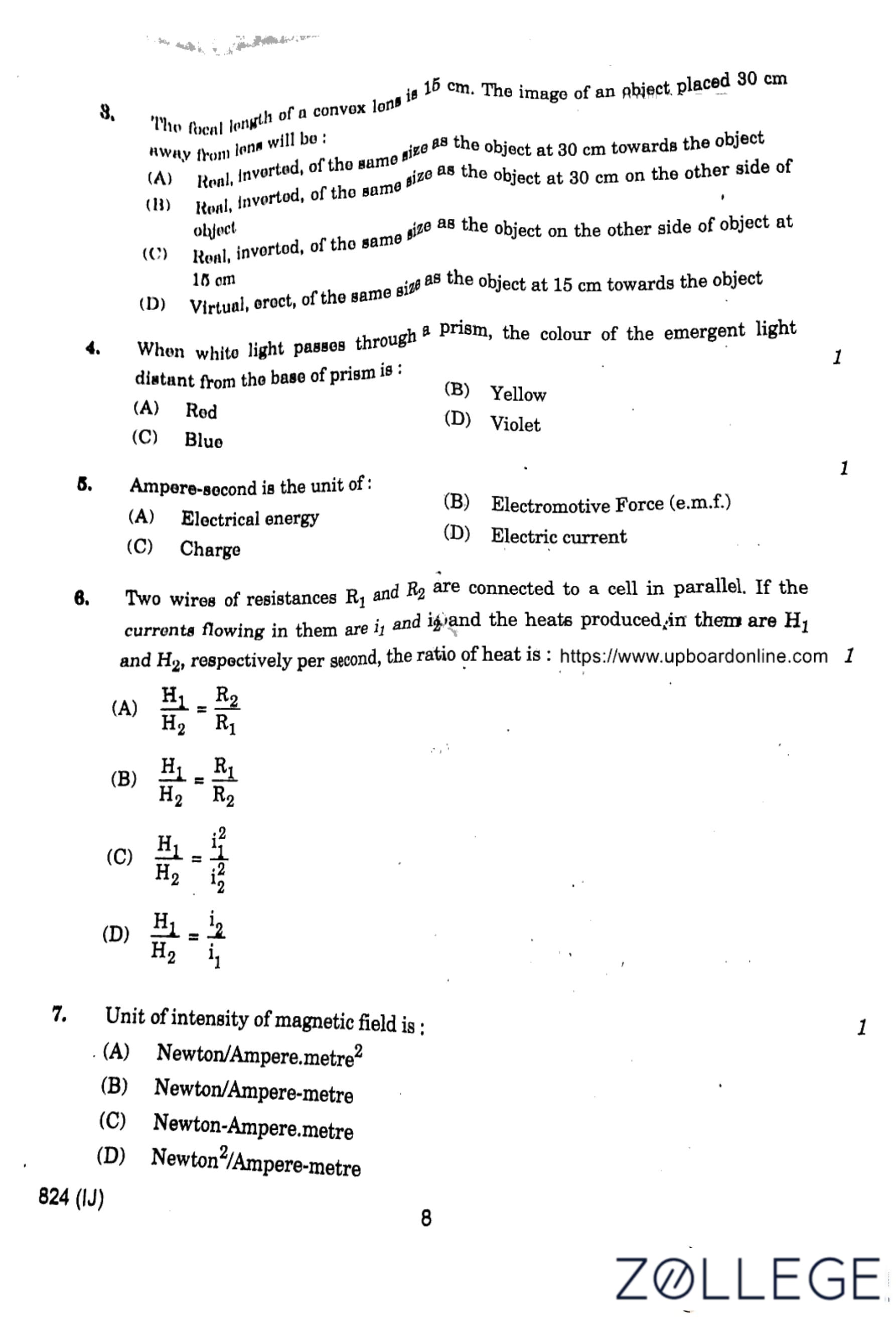

For a convex lens, when an object is placed at twice the focal length (2F), the image is real, inverted, and of the same size as the object and is formed at 2F on the other side. Here, \( 2F = 30 \) cm, confirming the answer.
Quick Tip: For a convex lens, an object at \textbf{twice the focal length} forms an image of the \textbf{same size at twice the focal length on the other side}.

When white light passes through a prism, it disperses into a spectrum of colors. Red light deviates the least due to its longest wavelength and lowest refractive index, making it appear farthest from the base of the prism.
Quick Tip: The \textbf{longer the wavelength}, the \textbf{lesser the deviation} in a prism. Red bends the least, and violet bends the most.

Ampere-second (\( A \times s \)) is the unit of electric charge, as charge (\( Q \)) is given by \( Q = I \times t \), where \( I \) is current in amperes and \( t \) is time in seconds.
Quick Tip: Remember: \textbf{Charge (Coulomb) = Current (Ampere) × Time (Seconds)}.

According to Joule’s Law of Heating, the heat produced in a conductor is given by \( H = I^2 R t \). Since the resistances are connected in parallel, the potential difference across each resistor is the same. Using the relation between current and resistance in a parallel circuit, we know that \( I = \frac{V}{R} \). Therefore, the heat produced is directly proportional to the resistance when the current is constant.

Thus, the ratio of the heats produced in the two wires is: \[ \frac{H_1}{H_2} = \frac{R_2}{R_1} \] Quick Tip: In a parallel circuit, heat produced is directly proportional to the \textbf{resistance} when the voltage is constant. Use Joule’s law \( H = I^2 R t \) for calculations.

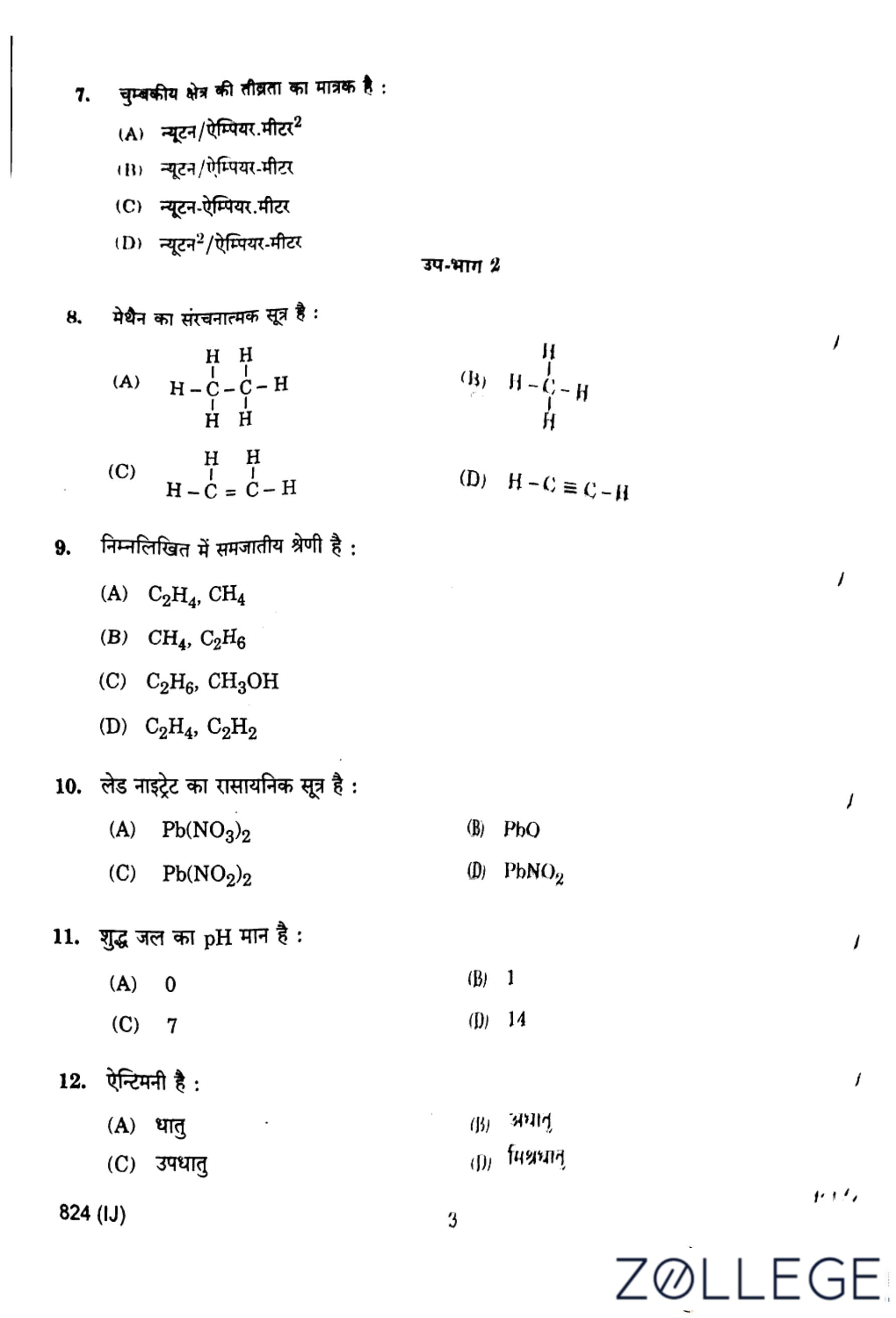

The intensity of the magnetic field, or magnetic field strength (\( H \)), is measured in Newton per Ampere-metre (N/A·m). This unit is derived from the relationship: \[ H = \frac{F}{I \cdot L} \]
where \( F \) is force, \( I \) is current, and \( L \) is length.
Quick Tip: The unit of magnetic field intensity is derived from \textbf{force per unit current per unit length}.

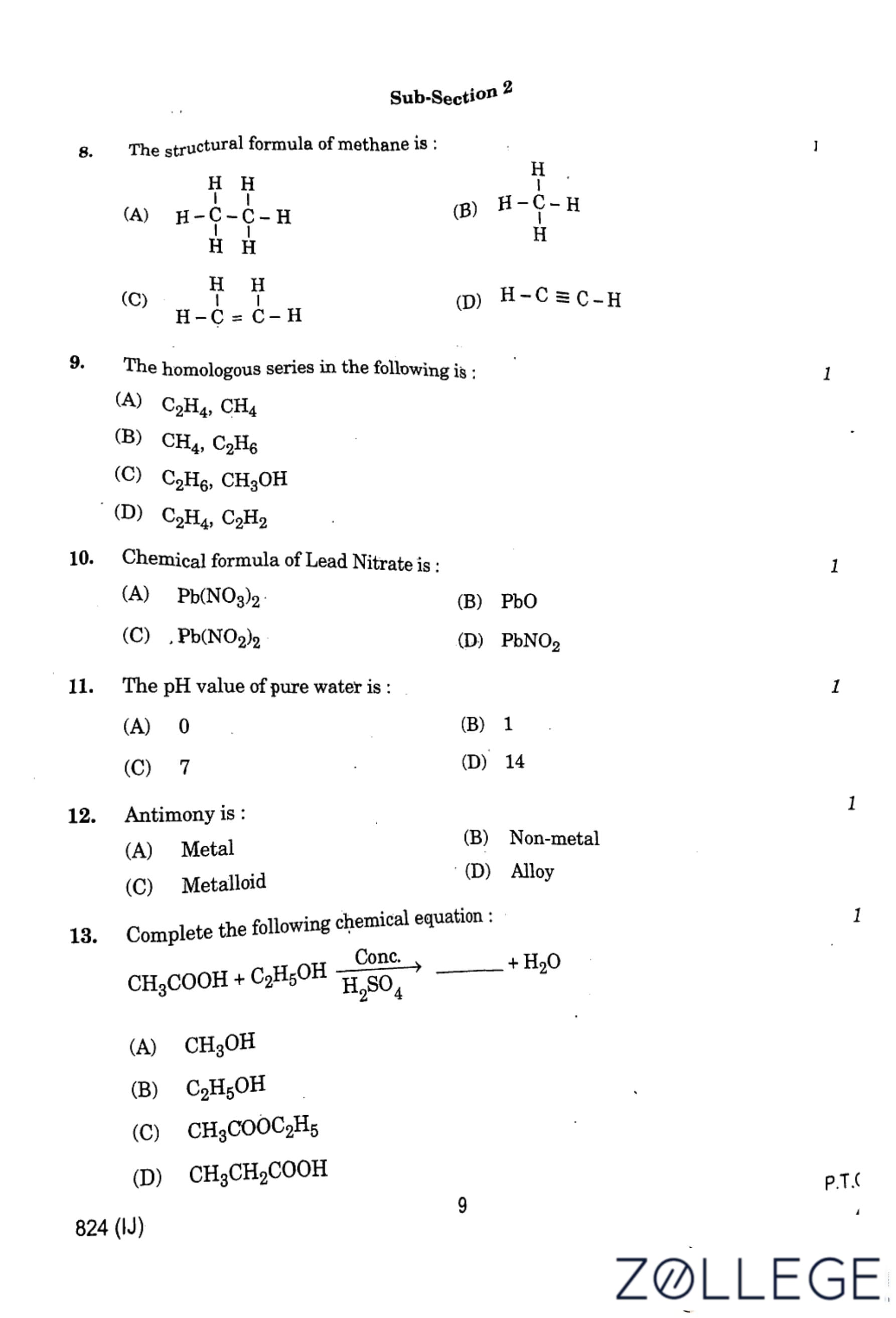

Methane (\( CH_4 \)) has a tetrahedral structure where carbon forms four single bonds with hydrogen atoms. It follows the octet rule and represents a simple hydrocarbon in the alkane series.
Quick Tip: Methane is a \textbf{saturated hydrocarbon} with a \textbf{tetrahedral shape}.

A homologous series is a group of compounds with the same functional group and general formula. Methane (\( CH_4 \)) and Ethane (\( C_2H_6 \)) belong to the alkane series, differing by a \( CH_2 \) group.
Quick Tip: Alkanes follow the general formula \textbf{\( C_nH_{2n+2} \)}.

Lead Nitrate is an ionic compound with the formula \( Pb(NO_3)_2 \), containing one lead (\( Pb^{2+} \)) ion and two nitrate (\( NO_3^- \)) ions. It is widely used in chemical analysis and pyrotechnics.
Quick Tip: The \textbf{nitrate ion} has the formula \( NO_3^- \) and combines with metals in salt formation.

Pure water has a neutral pH of 7 at room temperature (\( 25^\circ C \)). This means it has equal concentrations of H\(^+\) and OH\(^-\) ions, making it neither acidic nor basic.
Quick Tip: pH scale ranges from \textbf{0 to 14}, where \textbf{7 is neutral}, below 7 is acidic, and above 7 is basic.

Antimony (Sb) is classified as a metalloid because it has properties of both metals and non-metals. It is brittle, conducts electricity under certain conditions, and is used in semiconductors and alloys.
Quick Tip: Metalloids have properties of both metals and non-metals; examples include \textbf{Boron, Silicon, and Antimony}.

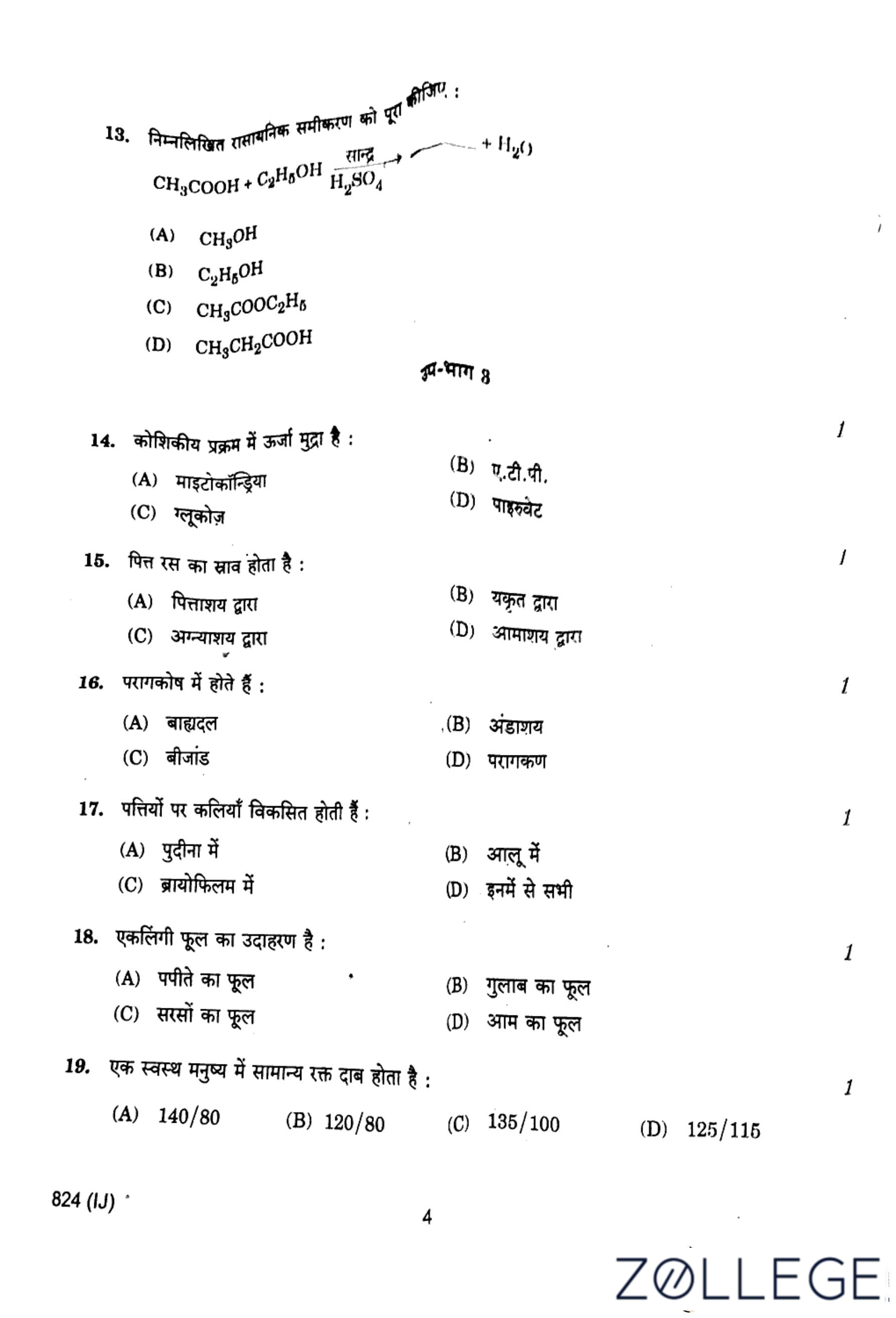

This reaction is an example of esterification, where acetic acid (\( CH_3COOH \)) reacts with ethanol (\( C_2H_5OH \)) in the presence of concentrated sulfuric acid (\( H_2SO_4 \)) to form ethyl ethanoate (\( CH_3COOC_2H_5 \)) and water.
Quick Tip: Esterification is a reaction between \textbf{a carboxylic acid and an alcohol} to form an \textbf{ester and water}.

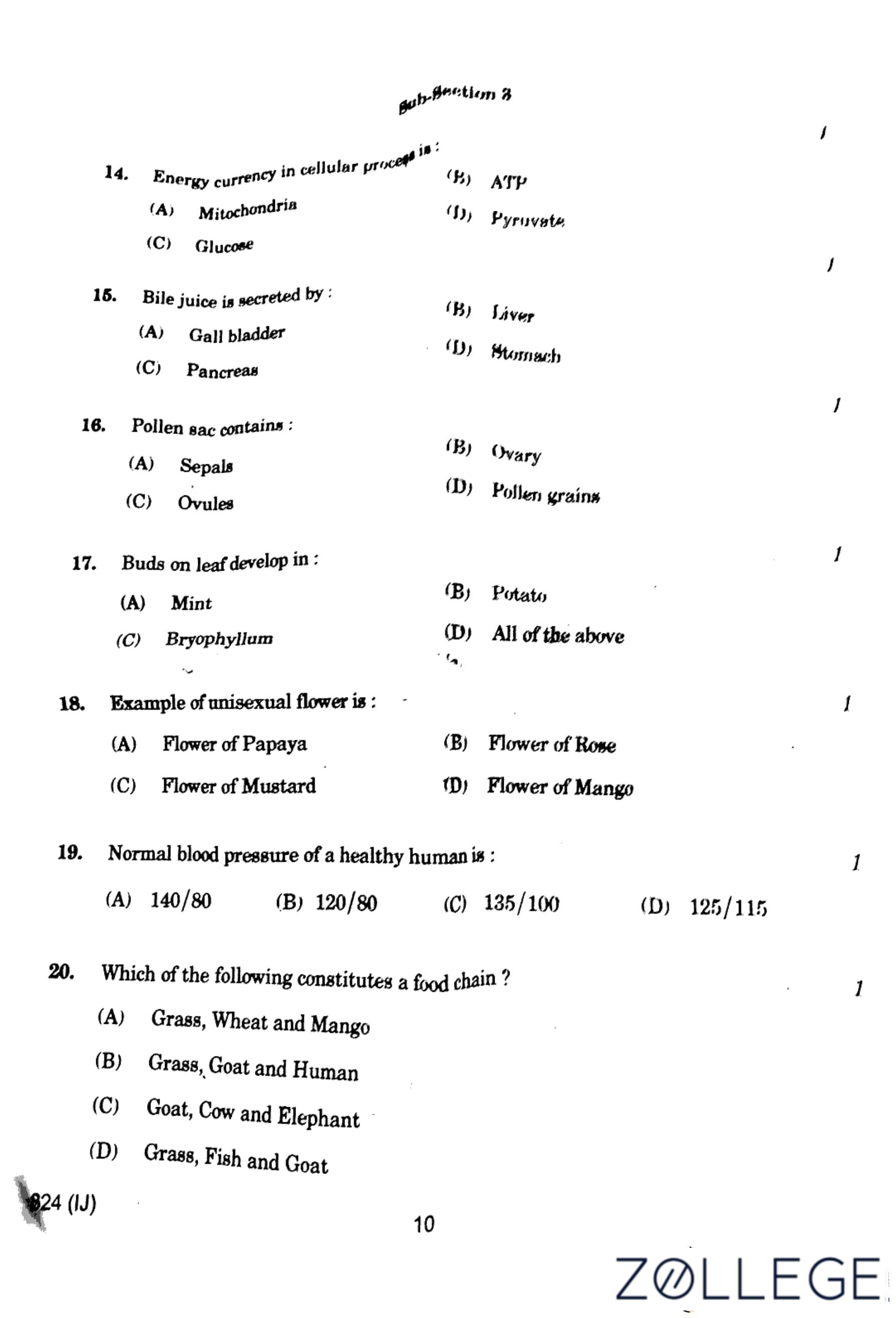

Adenosine Triphosphate (ATP) is known as the energy currency of the cell. It stores and transports chemical energy within cells, providing power for metabolic processes like muscle contraction and biosynthesis.
Quick Tip: ATP is produced in the \textbf{mitochondria} through cellular respiration.

Bile juice is produced by the liver and stored in the gall bladder. It aids in the digestion and emulsification of fats by breaking down large fat globules into smaller ones, improving enzyme efficiency.
Quick Tip: Bile juice contains \textbf{bile salts} and \textbf{bile pigments}, which help in \textbf{fat digestion}.

The pollen sac, found in the anther of a flower, contains pollen grains. These grains carry male gametes required for fertilization in plants.
Quick Tip: Pollen grains develop inside the \textbf{anther} of a flower and play a role in \textbf{sexual reproduction}.

Vegetative propagation occurs in plants like Mint, Potato, and Bryophyllum. However, only Bryophyllum propagates through buds on its leaves. Potato propagates through tubers, and Mint spreads through runners.
Quick Tip: \textbf{Vegetative propagation} allows plants to reproduce \textbf{asexually} using leaves, stems, or roots.

Unisexual flowers contain either male (stamens) or female (carpels) reproductive organs, but not both. Papaya and watermelon are examples of unisexual flowers, while rose and mustard are bisexual flowers.
Quick Tip: \textbf{Unisexual flowers} have either \textbf{stamens} or \textbf{carpels}, while \textbf{bisexual flowers} contain both.

The normal blood pressure of a healthy adult is 120/80 mmHg, where 120 mmHg represents the systolic pressure (when the heart contracts) and 80 mmHg represents the diastolic pressure (when the heart relaxes).
Quick Tip: \textbf{Hypertension} occurs when blood pressure is consistently above \textbf{140/90 mmHg}.

A food chain shows the transfer of energy from producers (plants) to primary consumers (herbivores) and then to secondary consumers (carnivores/omnivores). Here, Grass → Goat → Human represents a correct food chain.
Quick Tip: A \textbf{food chain} always begins with \textbf{plants (producers)} and ends with \textbf{top consumers}.

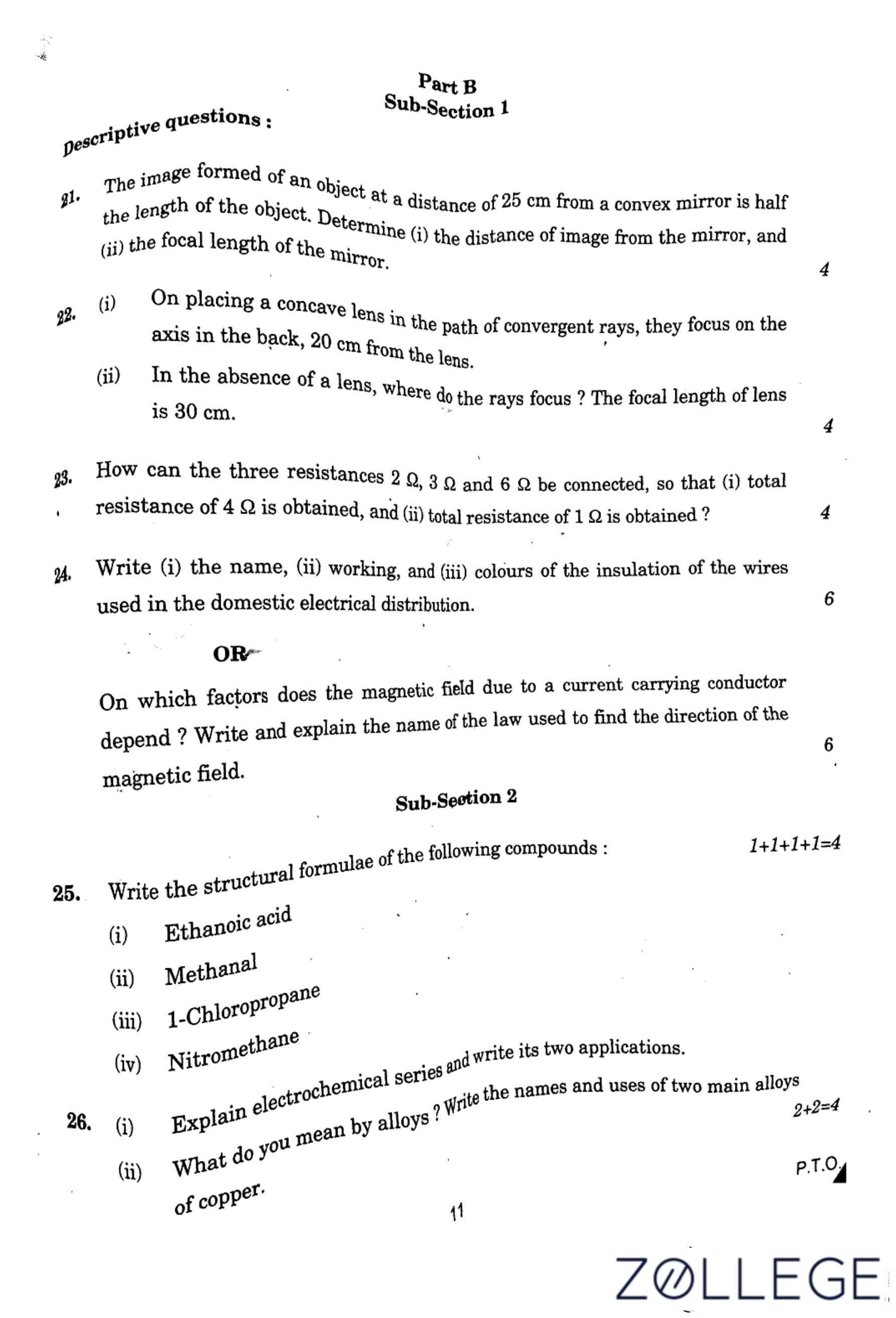

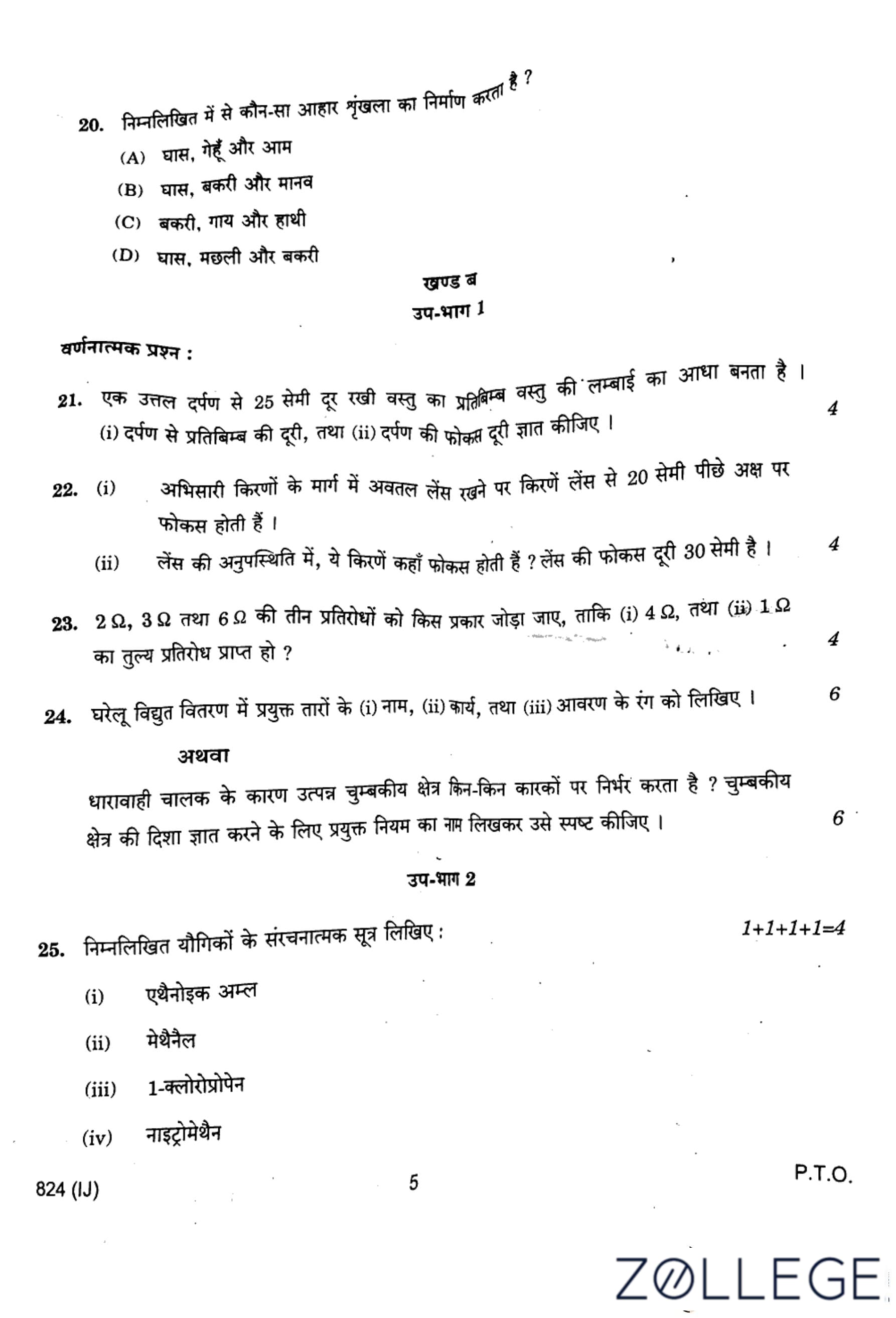

Using the mirror formula: \[ \frac{1}{f} = \frac{1}{v} - \frac{1}{u} \]
Given that the object distance \( u = -25 \) cm, and the magnification \( m = \frac{-v}{u} = \frac{1}{2} \), we can find \( v \) and then solve for \( f \).
From magnification formula: \[ m = \frac{-v}{u} = \frac{1}{2} \Rightarrow v = \frac{-u}{2} = \frac{-(-25)}{2} = 12.5 \, cm \]
Now, using the mirror formula with \( u = -25 \) cm and \( v = 12.5 \) cm: \[ \frac{1}{f} = \frac{1}{v} - \frac{1}{u} = \frac{1}{12.5} - \frac{1}{-25} \]
Solving for \( f \), we get: \[ \frac{1}{f} = \frac{1}{12.5} + \frac{1}{25} = \frac{2}{25} \Rightarrow f = 25 \, cm \]

Thus, the answers are:
(i) \( v = 12.5 \, cm \)
(ii) \( f = 25 \, cm \) Quick Tip: The mirror formula \(\frac{1}{f} = \frac{1}{v} - \frac{1}{u} \) is used to determine focal length and image distance. For convex mirrors, both \( v \) and \( f \) are positive.

The lens formula: \[ \frac{1}{f} = \frac{1}{v} - \frac{1}{u} \]
Given \( f = -30 \) cm (since it's a concave lens, the focal length is negative), and the image distance \( v = -20 \) cm (since the image is formed on the same side as the object in a concave lens), we can substitute these values into the lens formula to find the object distance \( u \).

Using the lens formula: \[ \frac{1}{-30} = \frac{1}{-20} - \frac{1}{u} \]
Solving for \( u \): \[ \frac{1}{u} = \frac{1}{-20} - \frac{1}{-30} = -\frac{1}{60} \]
Thus, the object distance is \( u = -60 \, cm \).

So, the answers are:
(i) The object distance is \( u = -60 \, cm \) (since the object is placed at a distance of 60 cm in front of the concave lens).
(ii) In the absence of the lens, the rays would focus at the focal point of the lens, which is \( f = 25 \, cm \), since the focal length of the lens is 30 cm. Quick Tip: Concave lenses always produce \textbf{virtual, upright, and diminished} images, and they have a \textbf{negative focal length}.

(i) To obtain 4 Ω, we arrange \( 3Ω \) and \( 6Ω \) in parallel: \[ \frac{1}{R_p} = \frac{1}{3} + \frac{1}{6} = \frac{2}{6} + \frac{1}{6} = \frac{1}{2} \]
So, \( R_p = 2Ω \). Adding \( 2Ω \) in series gives \( 4Ω \).

(ii) To obtain 1 Ω, we connect all resistances in parallel: \[ \frac{1}{R} = \frac{1}{2} + \frac{1}{3} + \frac{1}{6} = \frac{3}{6} + \frac{2}{6} + \frac{1}{6} = \frac{6}{6} = 1 \]
Thus, \( R = 1Ω \).
Quick Tip: Use the formula for series and parallel resistances: \(\textbf{Series: } R = R_1 + R_2\), \(\textbf{Parallel: } \frac{1}{R} = \frac{1}{R_1} + \frac{1}{R_2} \).

(i) The main wires used in domestic electrical distribution are Live wire, Neutral wire, and Earth wire.


(ii) Working:

- The Live wire carries current from the main supply to the appliance.

- The Neutral wire provides the return path for the current.

- The Earth wire prevents electric shocks by directing leakage currents safely to the ground.


(iii) Colours of Insulation:

- Live wire: Red or Brown

- Neutral wire: Black or Blue

- Earth wire: Green or Yellow-green
Quick Tip: In domestic wiring, the \textbf{live wire} carries current, the \textbf{neutral wire} completes the circuit, and the \textbf{earth wire} provides safety.

The magnetic field produced by a current-carrying conductor depends on:

1. Current (I): A higher current produces a stronger magnetic field.

2. Distance (r): The magnetic field decreases as the distance from the conductor increases.

3. Medium: The nature of the surrounding medium affects the magnetic field strength.


The law used to determine the direction of the magnetic field is Right-Hand Thumb Rule:

- If we hold a current-carrying conductor with the right hand, such that the thumb points in the direction of current, then the fingers curl in the direction of the magnetic field.
Quick Tip: The \textbf{Right-Hand Thumb Rule} helps determine the magnetic field direction around a current-carrying conductor.

The structural formulae of the given compounds are:
1. Ethanoic acid (Acetic acid) - CH\textsubscript{3}COOH \[ H - C - C = O \] \[ \mid \quad \quad \quad \mid \] \[ H \quad \quad O - H \]

2. Methanal (Formaldehyde) - HCHO \[ H - C = O \] \[ \mid \] \[ H \]

3. 1-Chloropropane - C\textsubscript{3}H\textsubscript{7}Cl \[ CH_3 - CH_2 - CH_2 - Cl \]

4. Nitromethane - CH\textsubscript{3}NO\textsubscript{2} \[ CH_3 - NO_2 \] Quick Tip: \textbf{Structural formulae} represent the exact arrangement of atoms in a molecule. \textbf{Ethanoic acid} is a carboxylic acid, \textbf{methanal} is the simplest aldehyde, and \textbf{1-chloropropane} is a halogenated hydrocarbon.

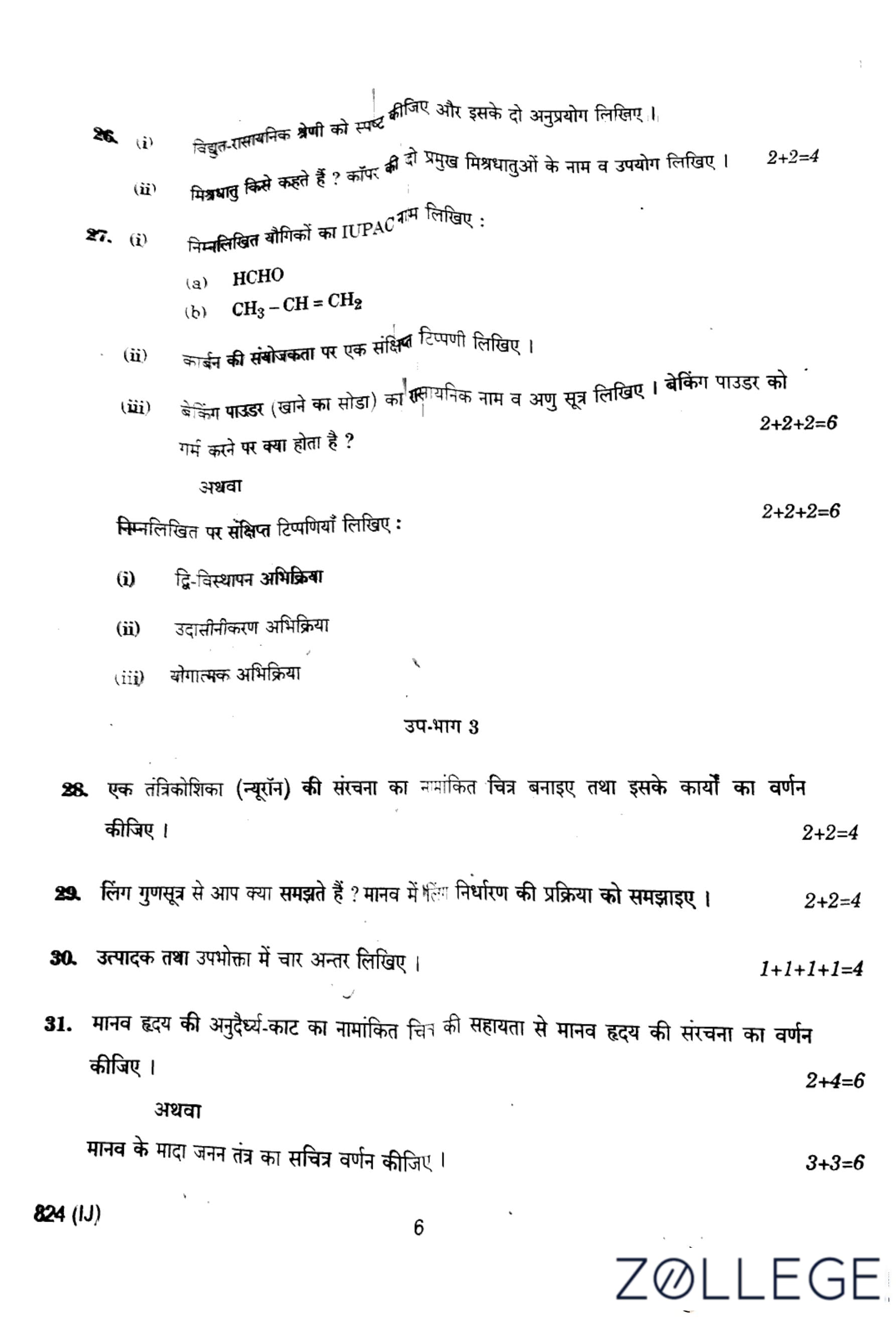

The Electrochemical Series is a list of elements arranged in the order of their standard electrode potentials. It helps determine the ability of a metal to lose or gain electrons.

Applications:
1. Helps predict the feasibility of redox reactions.
2. Used to determine the strength of oxidizing and reducing agents. Quick Tip: \textbf{Metals higher in the electrochemical series} are more reactive, while those lower are less reactive.

An alloy is a homogeneous mixture of two or more metals or a metal with a non-metal to improve properties like strength and corrosion resistance.

Main Alloys of Copper \& Their Uses:

1. Bronze (Copper + Tin) - Used in statues, medals, and coins.

2. Brass (Copper + Zinc) - Used in musical instruments, electrical fittings, and plumbing. Quick Tip: \textbf{Alloys} enhance the \textbf{mechanical and chemical properties} of metals, making them more durable.

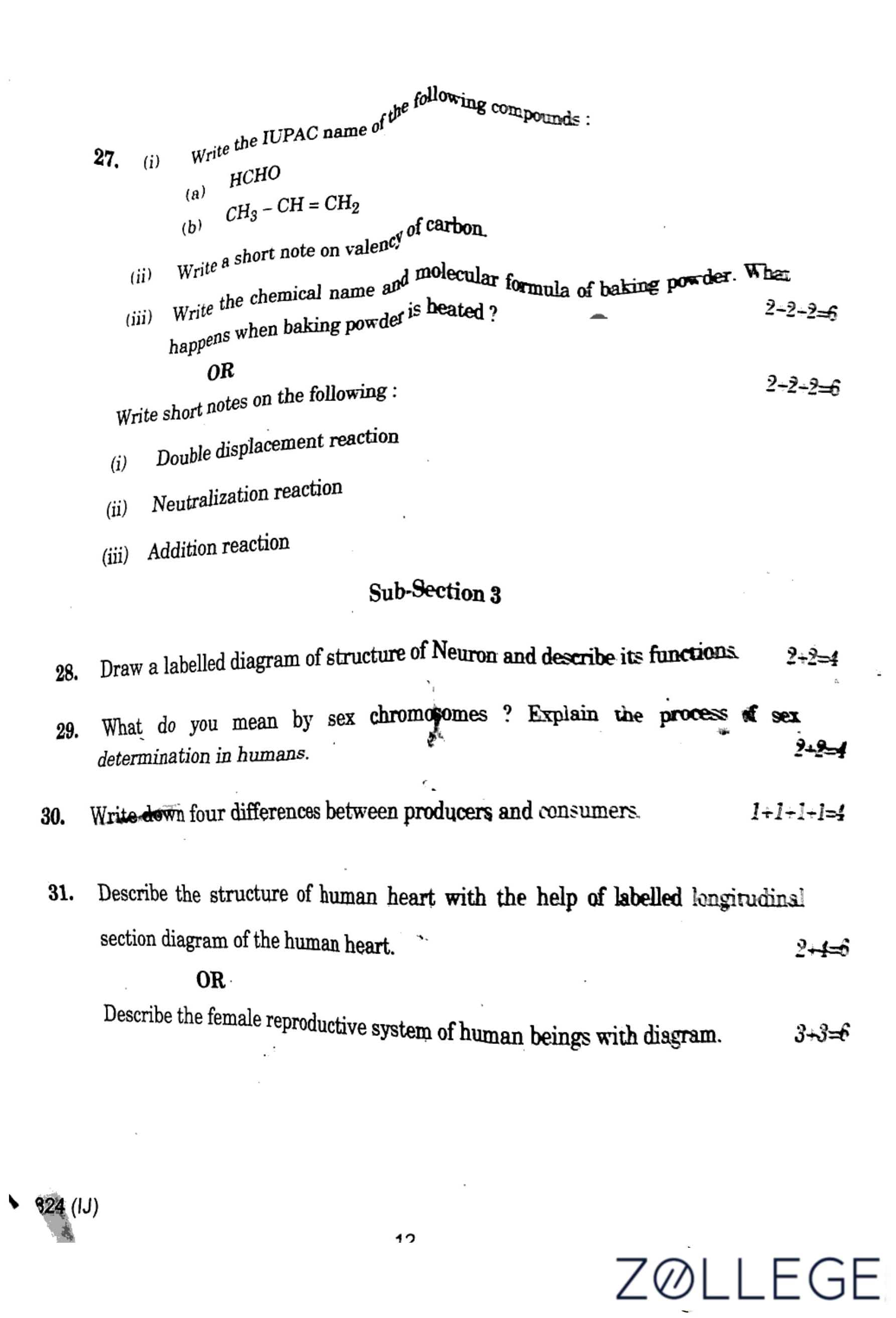

The IUPAC names of the given compounds are:
1. HCHO - Methanal (Formaldehyde)
2. CH\textsubscript{3} - CH = CH\textsubscript{2} - Propene Quick Tip: The IUPAC nomenclature follows the longest carbon chain rule and the functional group priority.

Valency of Carbon refers to its ability to form bonds with other atoms. Carbon has four valence electrons, allowing it to form four covalent bonds with other atoms like hydrogen, oxygen, nitrogen, and itself, leading to a vast range of organic compounds. Quick Tip: Carbon’s valency of four leads to the formation of single, double, and triple bonds, enabling organic diversity.

Chemical Name: Sodium Hydrogen Carbonate
Molecular Formula: NaHCO\textsubscript{3

When heated:
Baking powder decomposes to produce carbon dioxide gas, which helps in rising of dough in baking. \[ 2 NaHCO_3 \rightarrow Na_2CO_3 + H_2O + CO_2 \] Quick Tip: The release of \textbf{CO\textsubscript{2}} during baking makes food fluffy and light.

\caption{Structure of a Neuron
\label{fig:enter-Typical Structure of a neuron

A Neuron is the structural and functional unit of the nervous system. It consists of three main parts:

1. Cell body (Soma) – Contains the nucleus and cytoplasm.

2. Dendrites – Receive signals from other neurons.

3. Axon – Transmits impulses away from the cell body.


Functions of Neuron:

- It receives and transmits electrical and chemical signals.

- It helps in reflex actions and voluntary movements.

- It enables communication between different body parts and the brain.


\begin{quicktipbox
The neuron transmits signals via electrical impulses and neurotransmitters.
\end{quicktipbox Quick Tip: The neuron transmits signals via electrical impulses and neurotransmitters.

Sex chromosomes determine the biological sex of an individual. In humans, there are two types:
- X chromosome

- Y chromosome


Sex Determination Process:

- Males have XY chromosomes, and females have XX.

- The sex of the child depends on the type of sperm (X or Y) fertilizing the egg.

- If an X-sperm fertilizes the egg, a female (XX) is formed.

- If a Y-sperm fertilizes the egg, a male (XY) is formed.


\begin{quicktipbox
Sex determination follows Mendelian genetics and is controlled by the father’s sperm.
\end{quicktipbox Quick Tip: Sex determination follows Mendelian genetics and is controlled by the father’s sperm.

Producers vs. Consumers

\begin{tabular{|c|c|
\hline
Producers & Consumers

\hline
Synthesize their own food via photosynthesis & Depend on others for food

\hline
Examples: Plants, Algae & Examples: Humans, Animals

\hline
Autotrophic organisms & Heterotrophic organisms

\hline
Occupy the first trophic level in food chains & Occupy higher trophic levels

\hline
\end{tabular

\begin{quicktipbox
Producers convert solar energy into chemical energy, while consumers rely on it for survival.
\end{quicktipbox Quick Tip: Producers convert solar energy into chemical energy, while consumers rely on it for survival.

\caption{Structure of Human heart with labelled sections


The human heart is a four-chambered muscular organ that pumps blood throughout the body. It consists of:
- Right Atrium and Right Ventricle: Receive deoxygenated blood from the body and pump it to the lungs.

- Left Atrium and Left Ventricle: Receive oxygenated blood from the lungs and pump it to the rest of the body.

- Valves (Tricuspid, Bicuspid, Aortic, and Pulmonary Valves): Prevent backflow of blood.

- Major Blood Vessels: Aorta, Pulmonary Artery, Pulmonary Vein, and Vena Cava assist in circulation.


Function:
The heart ensures continuous circulation of oxygenated and deoxygenated blood, maintaining homeostasis. A labelled diagram of the heart helps visualize its structure.

\begin{quicktipbox
The heart functions through the coordinated contraction of its chambers, regulated by electrical impulses.
\end{quicktipbox Quick Tip: The heart functions through the coordinated contraction of its chambers, regulated by electrical impulses.
